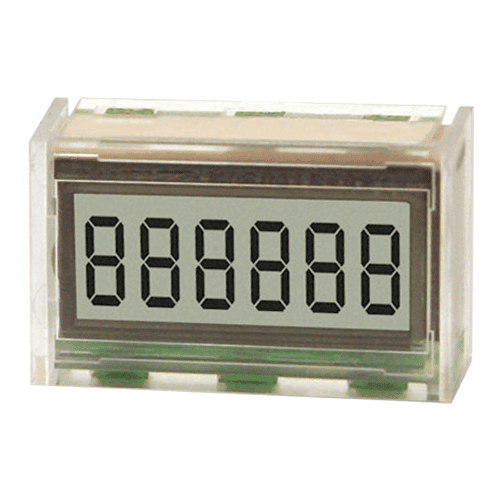

7000 Miniature, Low Power Totalizing Counter

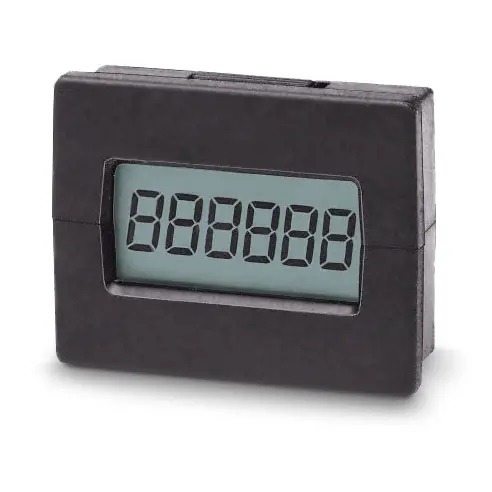

7000 with Bezel
Click to enlarge
7000 Miniature, Low Power Totalizing Counter
7000 with Bezel

7000 – Miniature, Low Power Totalizing Counter

Brand:

$48.00 Excl. GST

Total: $48.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The 7000 Series is a range of miniature 6-digit LCD totalizing counters designed for minimal power requirements. They are suitable for either direct PCB mounting or panel mounting and come with a bezel supplied. Can be configured to count electro-mechanical contact closure events using an external resistor and capacitor to eliminate contact bounce. Similarly the supply voltage can be increased using an external resistor and 3V zener diode.

Features:

  • Uses the latest CMOS circuitry to achieve quiescent current consumption of less than 5µA
  • 6mm black character high contrast LCD display
  • Counts pulses up to 10kHz frequency
  • External reset input
  • CE, UL and cUL approved
  • Bi-directional counting (7000AS model)
  • Hour Meter (7000XX model)

Technical Specs

TYPE7000
Supply Voltage2.6 – 3.4VDC
Current
Consumption		5uA quiescent, 10µA at 10kHz
Display6 digit black LCD, 6mm characters with leading zero blanking
Count Range999999 display rollover to 0
Count Input10kHz maximum, negative edge triggered, 0.7V threshold, 50µS minimum pulse
length, TTL/CMOS Compatible
Reset InputNegative edge triggered, 0.7V threshold, 15mS minimum pulse length, TTL/
CMOS Compatible
Direction InputAdd=logic 1, Subtract=logic 0 (0V)
Operating Temp-10°C to +60°C
Storage Temp-10°C to +60°C
MaterialClear polycarbonate
Environmental
Protection		IP40/DIN40050
Weight7.5g
