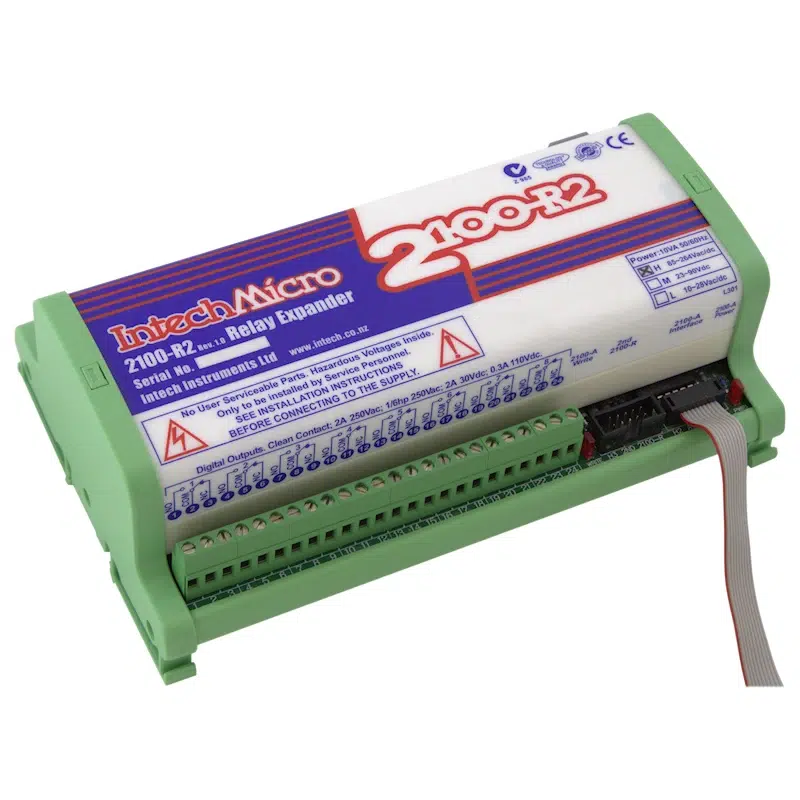

2100-R2 – Relay Expansion Unit for 2100-A16.

16 Channel Relay Ouput Expander.

2100-R2 – Relay Expansion Unit for 2100-A16

2100-R2 Features

  • 16 Digital, Isolated, Relay Outputs.
  • Cascade option for a second 2100-R2 [with 2100-A16 (rev 1.3) only].
    • Enables 32 Digital, Isolated, Relay Outputs.
  • Cost Effective Output Expansion for 2100-A16.
  • Easy Programming Via MicroScan Maps.
  • Programmable Relay States – NO or NC.
  • Universal AC/DC Power Supply.
  • Easy to Install.
  • Compact DIN Rail Mount Enclosure.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The 2100-R2 16 Channel Relay Output Expansion Module is used in conjunction with the 2100-A16. This allows the 2100-A16 to stand alone as a 16 channel controller / alarm unit. A second 2100-R2 can then be connected to the first 2100-R2, creating a 32 channel controller / alarm unit [supported on 2100-A16 (rev 1.3) only].

The 2100-R2 relay outputs can be used for any combination of control and alarm functions. The control parameters for each of the 16 controllers are downloaded from the user friendly MicroScan Software, and stored in permanent memory on the 2100-A16. These parameters include Setpoint (SV), Switching Differential, Auto / Manual, Manual Output Setting, Dual Action Control, Single Action Control, Heat / Cool, Heat Only, Cool Only.

The 16 controller alarms will operate unaffected by computer power downs, reboots, etc. The relay outputs can also be accessed directly from the Scada.

Terminals & Layout:

TYPE2100-R2
Input:Interfaced with the 2100-A16 or 2100-A4.
Digital Outputs: 16 Individually Isolated Changeover Relays with LED Indication of Each Output.
-FunctionsWhen used with a 2100-A16, the relays can be used as Set Point (SV)Switching Differential, Auto/Manual, Manual Output Setting, Dual Action Control,Single Action Control, Heat/Cool, Cool Only, Heat Only.
-ContactMaterial Silver Alloy
-Relay RatingsMaximum RatingApproved to Standard
250Vac, 2AUL
125Vac, 2ACSA
110Vdc, 0.3A;
30Vdc, 2A;
250Vac,1/6hp;
125Vac, 1/10hp.
-Number of Operations2 x 105 Min, at 1A, 250Vac Resistive Load.
Power:-H85~264Vac/dc; 50/60Hz; 10VA.
-M23~90Vdc; 10VA.
-L10~28Vac/dc; 50/60Hz; 10VA.
Refer to ‘2100-R2 H1 Power Supply Settings’ for voltage selection instructions
Safety and EMC Compliances:
EMC Emissions ComplianceEN 55022-A.
EMC Immunity ComplianceEN 50082-1.
Safety ComplianceEN 60950.
Mains Isolation250Vac.
Mains Isolation Test Voltage-To all Inputs and Outputs:3000Vac 50Hz for 1min.
-To Earth:1500Vac 50Hz for 1min.
Isolation Test Voltages:-Interface to Outputs3000Vac 50Hz for 1min.
-Between Outputs:1500Vac 50Hz for 1min.
General Specifications: (Unless otherwise stated in other input specifications.)
RF Immunity<±1% Effect FSO Typical.
Operating Temperature0~60C.
Storage Temperature-20~80C.
Operating Humidity5~85%RH Max. Non-Condensing.
Housing-MaterialABS Inflammability V0 (UL94)
-DimensionsL=195, W=120, H=70mm.
-Mounting35mm Symmetrical Mounting Rail.
-Weight800g. Includes Packaging.
  • Intech 2100-R2 Relay Output Expansion Unit - Installation Guide 251.43 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2100-R2.

Relay Output Expansion Unit, 85~264Vac/dc Power supply.

$996.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
