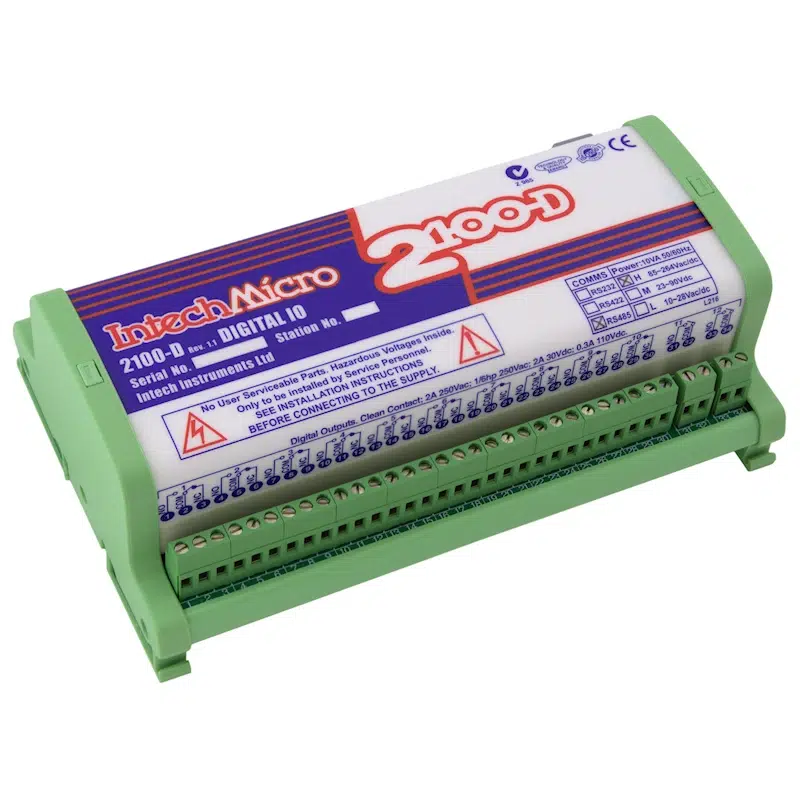

2100-D – Digital Input/Output Remote Station

12 Channel, Isolated Digital Inputs. 12 Channel, Isolated Digital Outputs.

2100-D – Digital Input/Output Remote Station

2100-D Features

  • RS422/RS485 Up to 1200m
  • Selectable Baud Rates
  • Digital Inputs:
    • – State or Count
    • – Speeds to 500Hz
  • Easy Programming Via MicroScan Maps
  • Programmable Station Number
  • Scaled Rate Value Via MicroScan Recorder
  • Scaled Totaliser Value Via MicroScan Recorder
  • Programmable Relay States – NO or NC
  • Comms Failure Time-out Using Relay 12
  • Comms TXE and TX Delay Programming
  • Programming Information Retained on Power Down
  • Universal AC/DC Power Supply
  • Easy to Install
  • Compact DIN Rail Mount Enclosure
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

The 2100-D offers a high degree of flexibility for both the fully isolated Digital Inputs and Relay Outputs, which are configurable by the user friendly MicroScan Software.

Configuration of Digital Inputs include:

(a) On/Off state.
(b) Flow metering. Pulses from flow or power meters etc, are accurately integrated into rate and totaliser values with virtually no loss of accuracy.
(c) Counter function. Pulses are counted up to 16383 and the counter value reset.

Relay Outputs include 10 with change over. Form C contacts, and 2 with normally open Form A contacts. The output state of the contacts are configurable, with all settings retained on power down. The 2100-D includes a communications failure alarm output, and supports communications via modem or radio.

Terminals and Layout:

TYPE 2100-D
Inputs:12 Individually Isolated Inputs with LED Indication of Each Input.
-Input Voltage5~30Vdc.
-Threshold4.6V typical.
-Load            @ 5V1.1mA per Channel.
                    @ 12Vdc4.2mA per Channel.
                    @ 24Vdc9.6mA per Channel.
-Frequency    -Low0~20Hz. Debounce - 50msec.
                    -High0~500Hz. Debounce - 2msec.
Outputs:12 Individually Isolated Relays with LED Indication of Each Output.
-Functions12 Relay Contact - 10 Change Over; 2 Normally Open.
-Contact MaterialSilver Alloy
-Relay RatingsMaximum Rating                 Approved to Standard
250Vac, 2A                                 UL
125Vac, 2A                                 CSA
110Vdc, 0.3A
30Vdc, 2A
1/6hp, 250Vac
1/10hp, 125Vac
-Number of Operations2 x 105 Min, at 1A, 250Vac Resistive Load.
Comms: -ProtocolsRS422/RS485 or RS232.
-Baud RateSelectable 2400, 4800, 9600. (Default = 9600).
-Format8 bit, No Parity, 1 Stop.
Power :-H85~264Vac/dc; 50/60Hz; 10VA.
-M23~90Vdc; 10VA.
-L10~28Vac/dc; 50/60Hz; 10VA.
Refer to ‘2100-D H1 Power Supply Settings’ for voltage selection instructions.
Safety and EMC Compliances:
EMC CompliancesEmissions EN 55022-A. Immunity EN 50082-1.
Safety ComplianceEN 60950.
Mains Isolation250Vac.
Mains Isolation Test Voltage-To all Inputs & Outputs:3000Vac 50Hz for 1min.
-To Earth1500Vac 50Hz for 1 min.
Input/Output Isolation Test Voltages-Between Inputs1000Vdc for 1min.
-Comms to Inputs1000Vdc for 1min.
-Relay Outputs to All Other Terminals:3000Vac 50Hz for 1min.
-Between Relay Outputs1500Vac 50Hz for 1min.
General Specifications: (Unless otherwise stated in other input specifications.)
RF Immunity<±1% Effect FSO Typical.
Operating Temperature0~60C.
Storage Temperature-20~80C.
Operating Humidity5~85%RH Max. Non-Condensing.
Housing-MaterialABS Inflammability V0 (UL94)
-DimensionsL=195, W=120, H=70mm.
-Mounting35mm Symmetrical Mounting Rail.
-Weight900g. Includes Packaging.

Download Station Programmer Configuration Software

  • Intech 2100-D Digital Input and Output Remote Station - Installation Guide 594.32 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2100-D.

12 Digital Inputs and 12 Digital Outputs. RS485 Comms, 85~264Vac/dc Power Supply.

$1,293.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
