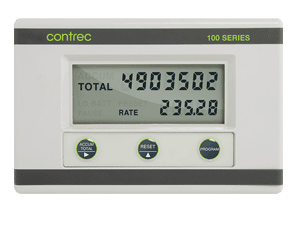

The 104D Loop Powered Rate Totaliser requires no external power and is designed to operate with turbine, positive displacement and paddlewheel flowmeters.
Applications include irrigation systems and pipelines, and as a replacement for mechanical registers.
Loop Powered
The 104D is loop powered via a 4-20mA output.
Watertight Field Mounting Enclosure
The 104D Loop Powered Rate Totaliser is housed in a rugged yet attractive IP67 (Nema 4X) rated polycarbonate enclosure which is completely watertight. This enables the instrument to be mounted directly on the flowmeter, panel mounted or wall mounted using a special universal bracket. A 2″ pipe mounting bracket is also available.
Fully User Programmable
K-factor, decimal point positions, filter constants and time base are fully user programmable. Rate and Totals can also be displayed in different engineering units such as gallons per minute and barrels.
