On Setup Tools, Click Add New Station

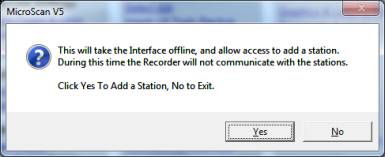

Click Yes

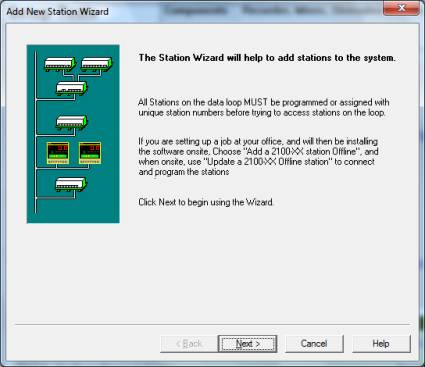

Click Next

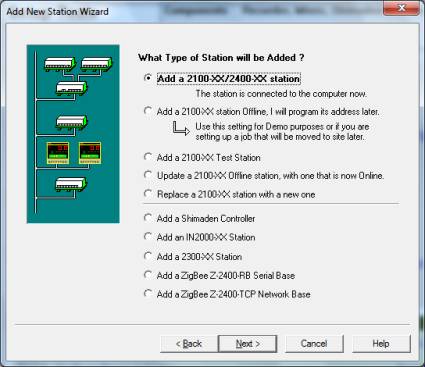

Click Add 2100-XX/2400-XX station, Click Next.

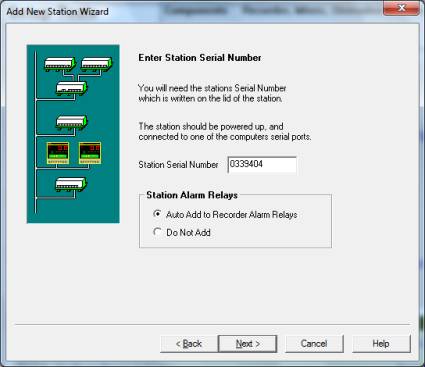

Enter Serial Number written on lid of station, click Next.

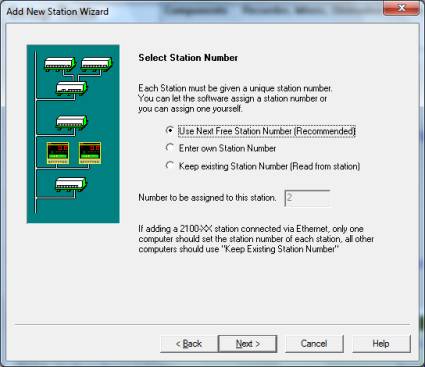

Click Use Next Free, click Next

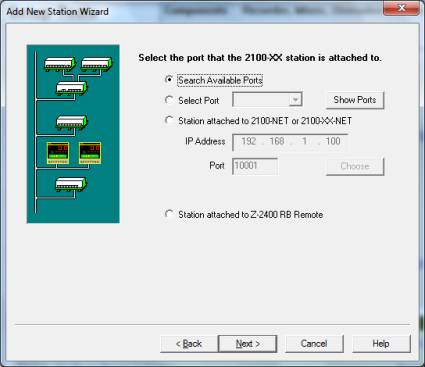

Click Station attached to Z-2400-RB Remote, Base stats will be read in and the remote nodes will be listed.

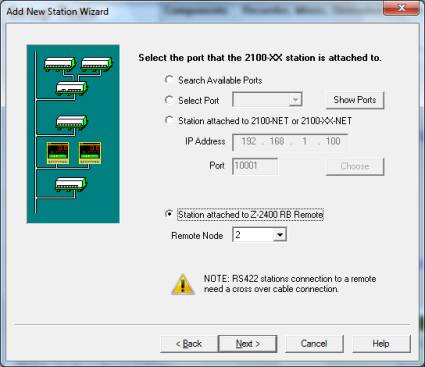

Select the remote node in use (in this case 2). Click Next.

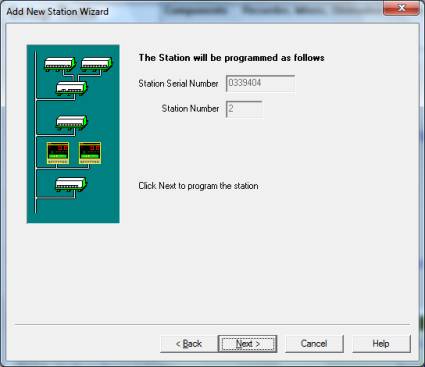

Click Next

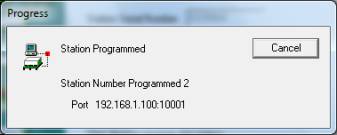

Progress taking place displayed.

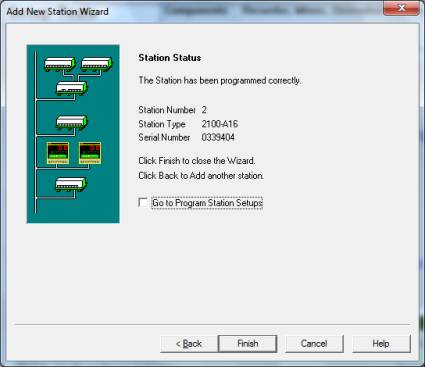

Station added ok, click Finish.
