| Station Setup |
| 2300-A8II |
Station Summary

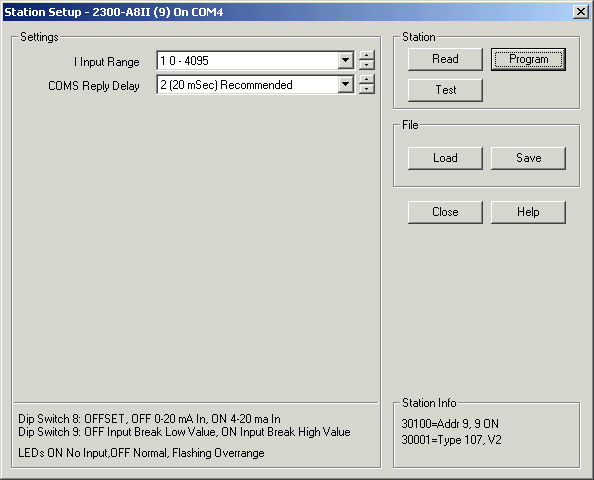

Station Programming dialog
After changes are made, click "Program" to write changes to station.
Settings Table
| I Input Range | 1 0 - 4095 Recommended 2 0 - 20.00mA 3 +/- 20.000mA |
| COMS Reply Delay | 0 to 990 mSec (20 mSec recommended) |
DIP Switch Table
| Switch 1-7 | Address (See Address Table) |
| Switch 8 | Offset OFF 0-20 mA In ON 4-20mA In |
| Switch 9 | Sensor Break OFF = Input Break Low Value ON = Input Break High Value |
| Switch 10 | No Action, Leave OFF |
LED Indications
| 1-8 INPUT LED OFF | Input Normal |
| 1-8 INPUT LED ON | Input Faulty |
| INPUT LED FLASHING | Input Overrange |
| P | Flashing - Station is Powered up and working |
| R | Flashes to indicate good modbus message arrived for this station |
| T | Flashes to indicate reply message has been sent from this station |
Station Info (Read from station)
| 30100 | Dip Switch settings |
| 30001 | Station Type and Software Version (Type = 107) |

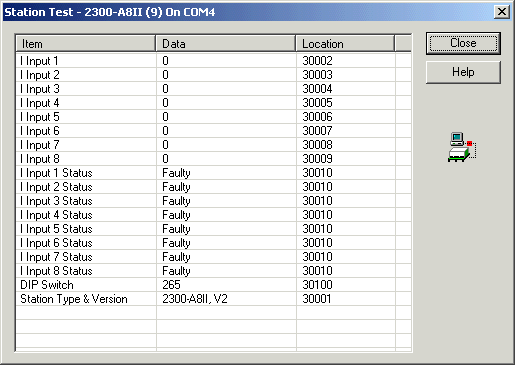

Station Test Dialog

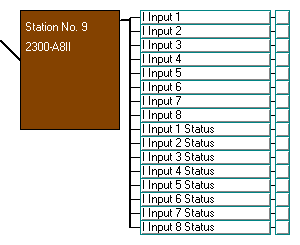

Station Map Display
