| Station Setup |
| 2300-A8I |
Station Summary

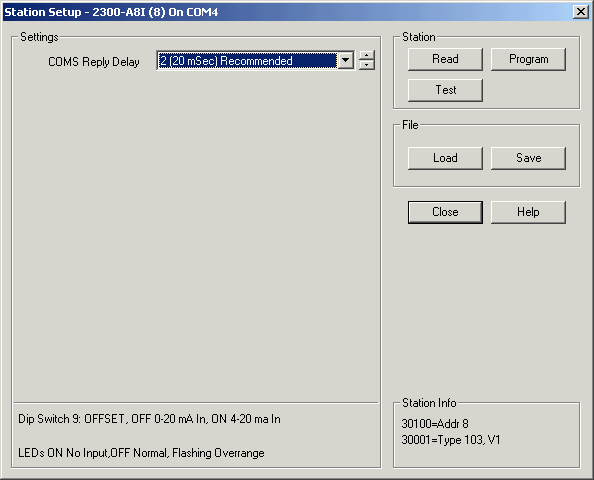

Station Programming dialog
After changes are made, click "Program" to write changes to station.
Settings Table
| COMS Reply Delay | 0 to 990 mSec (20 mSec recommended) |
DIP Switch Table
| Switch 1-7 | Address (See Address Table) |
| Switch 8 | No Action, Leave OFF |
| Switch 9 | Offset OFF 0-20 mA In ON 4-20mA In |
| Switch 10 | No Action, Leave OFF |
LED Indications
| 1-8 INPUT LED OFF | Input Normal |
| 1-8 INPUT LED ON | Input Faulty |
| INPUT LED FLASHING | Input Overrange |
| P | Flashing - Station is Powered up and working |
| R | Flashes to indicate good modbus message arrived for this station |
| T | Flashes to indicate reply message has been sent from this station |
Station Info (Read from station)
| 30100 | Dip Switch settings |
| 30001 | Station Type and Software Version (Type = 103) |

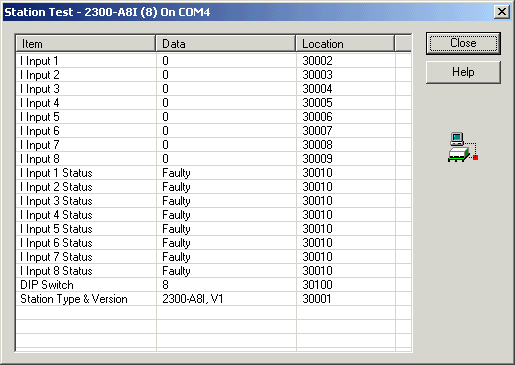

Station Test Dialog
The I Input values are shown as 0 - 4095
Status shown as Healthy or Faulty.

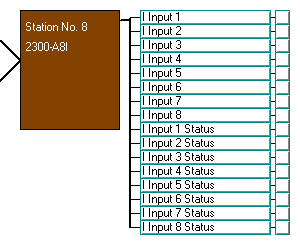

Station Map Display
